Wiring Diagram Generator

Fill out the requirements for your linear actuator project to generate a custom wiring diagram

Legend

2CH-REM

2 Channel Remote System

DO NOT reverse the red and black connections; red must be connected to 12V+ and black to GND

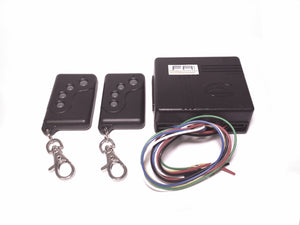

4CH-RC

4 Channel Remote System

DO NOT reverse the red and black connections; red must be connected to 12V+ and black to GND

FA-POCT

Over Current Protection Module

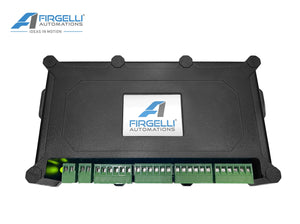

FA-SYNC-2

DO NOT reverse the power connections; VIN must be connected to 12V+ and GND to GND

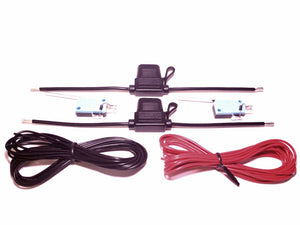

EL-KIT

External Limit Switch with Diode

Diode IN4007

We do not sell these, you’ll need to purchase them from a different retailer

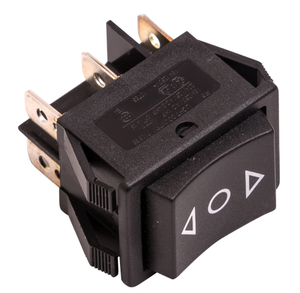

DPDT Rocker Switch

MAN-RS, MAN-RS2, WPRS-SUS, WPRS-MOM

Ground

12V+
