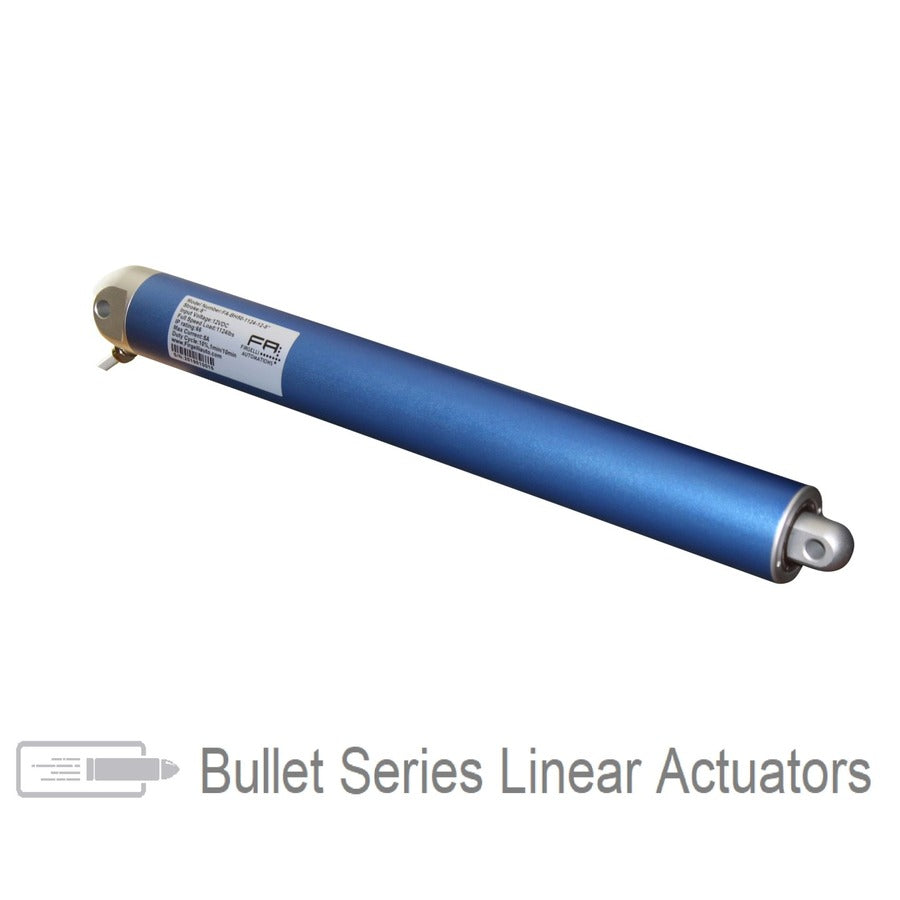

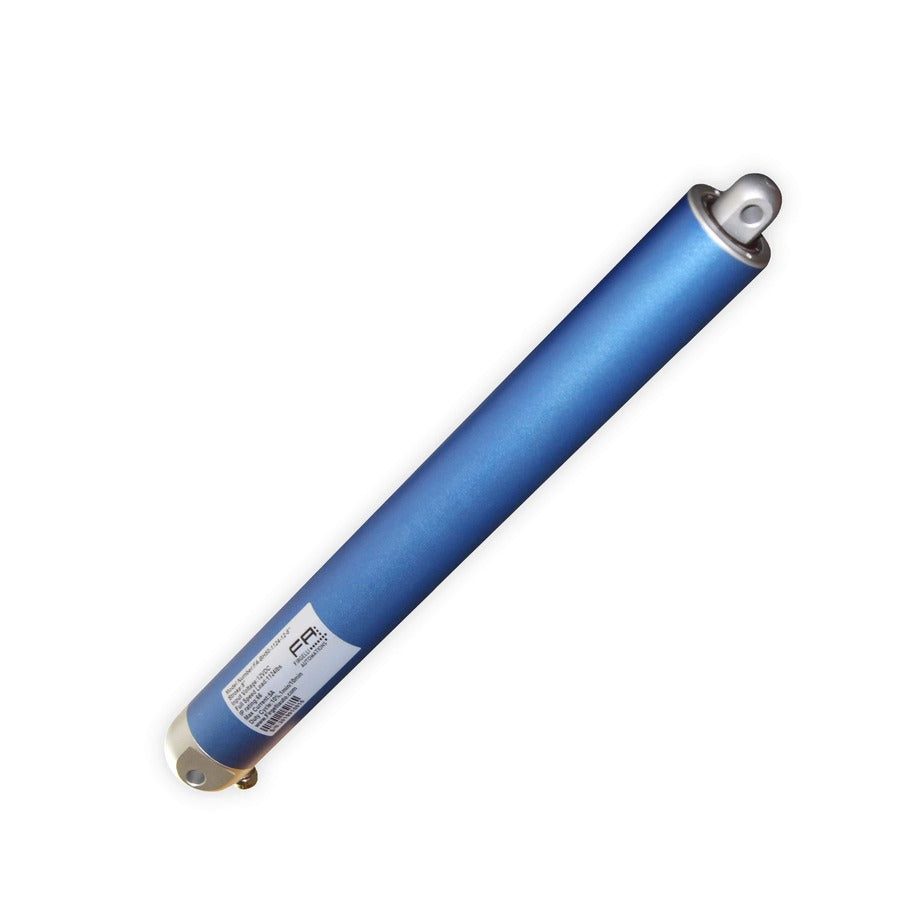

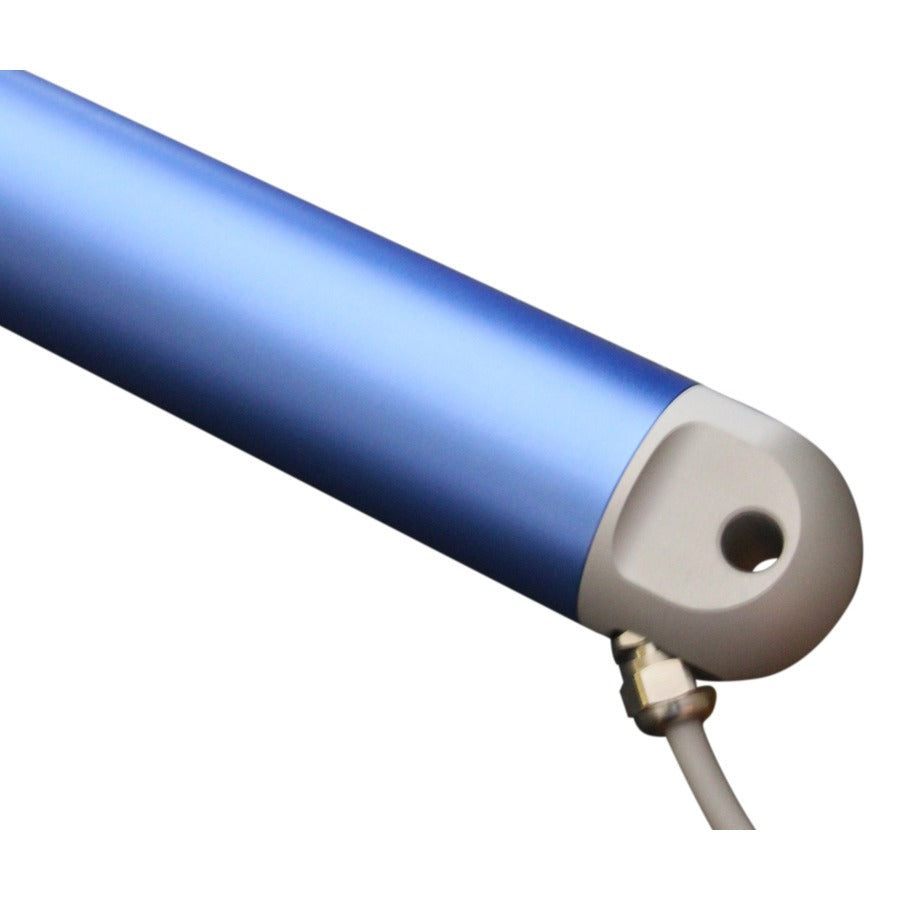

Bullet Series 50 Cal. Linear Actuators
Bullet Series 50 Cal. Linear Actuators
Model #
Description
The Bullet Series 50 Cal. Linear Actuator was developed to have a slim in-line motor design. Includes built-in hall effect sensor, which allows for synchronization, position and speed control. The hall effect feedback is vital to applications where multiple actuators must travel in sync. Popular within robotics, manufacturing, marine, off-road vehicles and home automation.
To move between two and four actuators in synchronous we recommend our dedicated control board, the FA-SYNC-X. A video tutorial of how to use this product is available here.

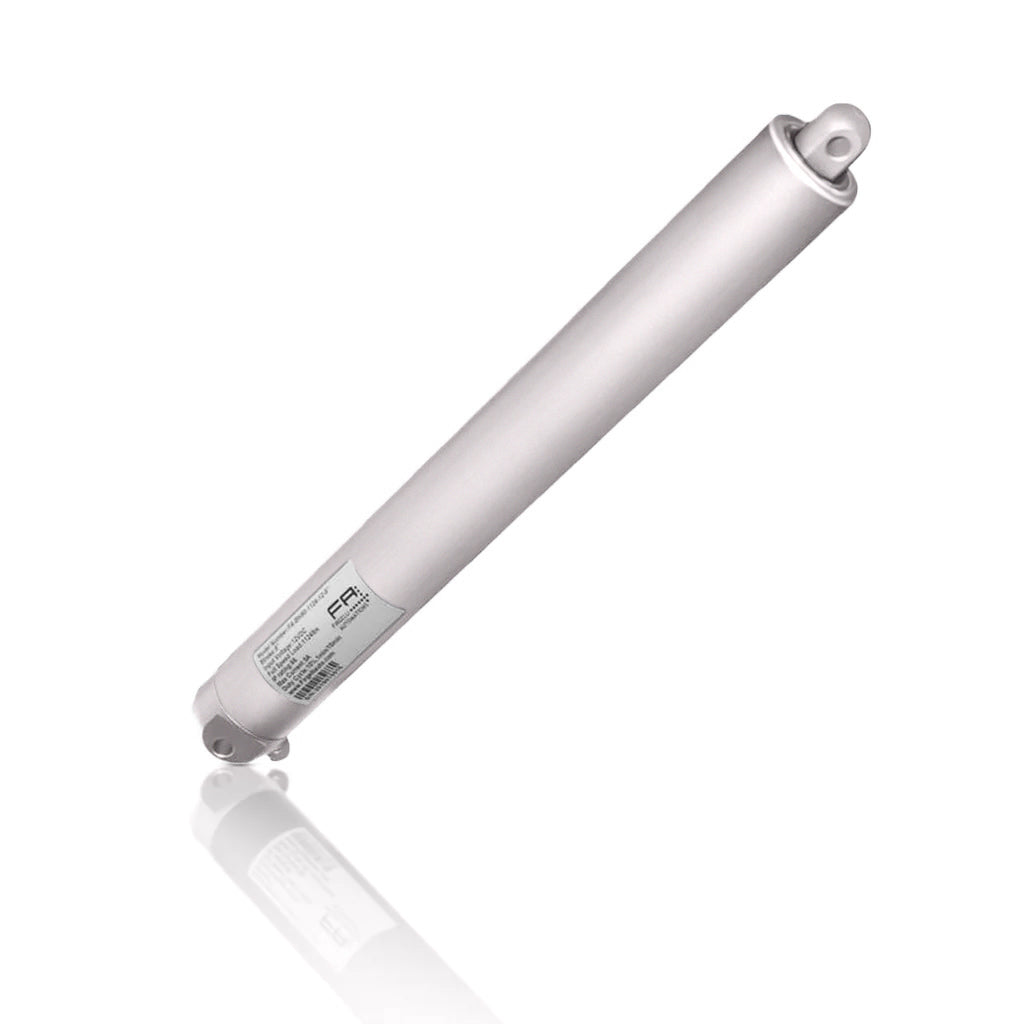

*Product now silver
Specifications
| FA-BH50-500-12-(S) | ||
| Push/Pull Force | 500 lbs. | |
| Static Force | 800 lbs. | |
| Speed at No load | 0.48”/sec | |
| Gear Ratio | 51:1 | |
| Voltage | 12V | |
| Max Current at full load | 10A | |
| Duty Cycle | 10% 1 min on and 10 min rest at full load | |
| Operating Temp. Range | -4°F to 149°F (-20°C to 65°C) | |
| Protection Class | IP66 | |
| No Load Noise Level | 50-70 dB | |
| Diameter | 1.97" (50mm) | |
| Outer Housing Material | Aluminum 6061 | |
| Expansion Rod Material | Stainless Steel 304 | |
| Pitch of Leadscrew | P4.0*1T | |
| Limit Switch | Built-In non-adjustable | |
| Feedback | Hall Effect Sensor | |
| Pulses Per Revolution | 153 PPR | |
| Revolutions Per Inch Stroke | 6.35 | |
| Number of Hall Magnets | 3 PPR | |
| Hall Sensor Pulses per inch of travel | 971 | |
| Feedback Voltage | 5V | |
| Synchronous Capability | Yes, with a Microcontroller | |
| Cable Length | 1.5 feet | |

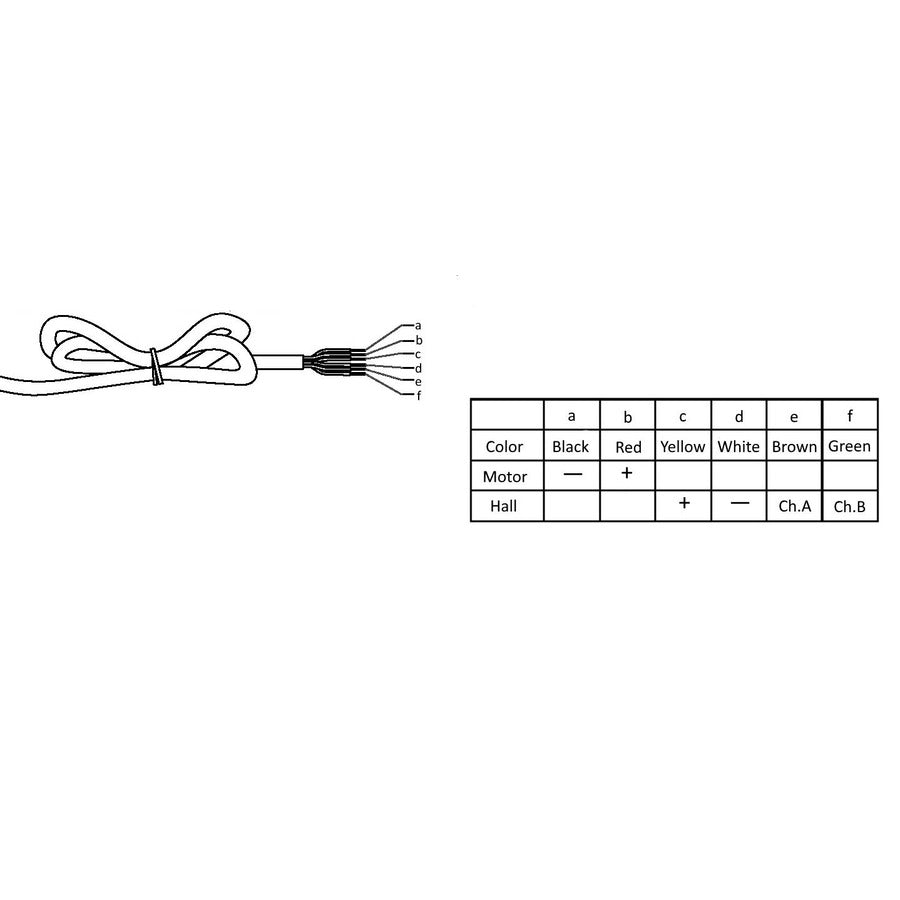

| Wire Gauge | 18AWG Motor, 20AWG Sensor | |
| Brackets | MB50, MB50U | |
| Stroke Length | Retracted Length | Extended Length | Weight (lb) | STEP File |
| 6" | 18.21" | 24.07" | 4.85 | FA-BH50-(F)-(V)-6 |
| 8" | 20.18" | 28.01" | 5.25 | FA-BH50-(F)-(V)-8 |
| 10" | 22.14" | 31.95" | 5.6 | FA-BH50-(F)-(V)-10 |
| 12" | 24.11" | 35.88" | 5.95 | FA-BH50-(F)-(V)-12 |
| 18" | 31.99" | 49.66" | 7.25 | FA-BH50-(F)-(V)-18 |
| 24" | 37.89" | 61.47" | 8.15 | FA-BH50-(F)-(V)-24 |
| 30" | 45.77" | 75.25" | 9.45 | FA-BH50-(F)-(V)-30 |
| 36" | 51.67" | 87.07" | 11.1 | FA-BH50-(F)-(V)-36 |
| 40" | 55.61" | 94.94" | 11.35 | FA-BH50-(F)-(V)-40 |
Speed and Load Curves
Technical Drawings
