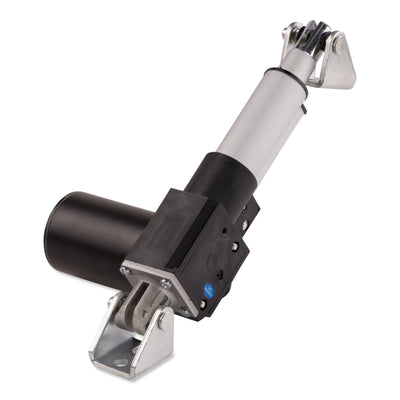

Mounting bracket for all Heavy Duty and Deluxe Rod Actuators

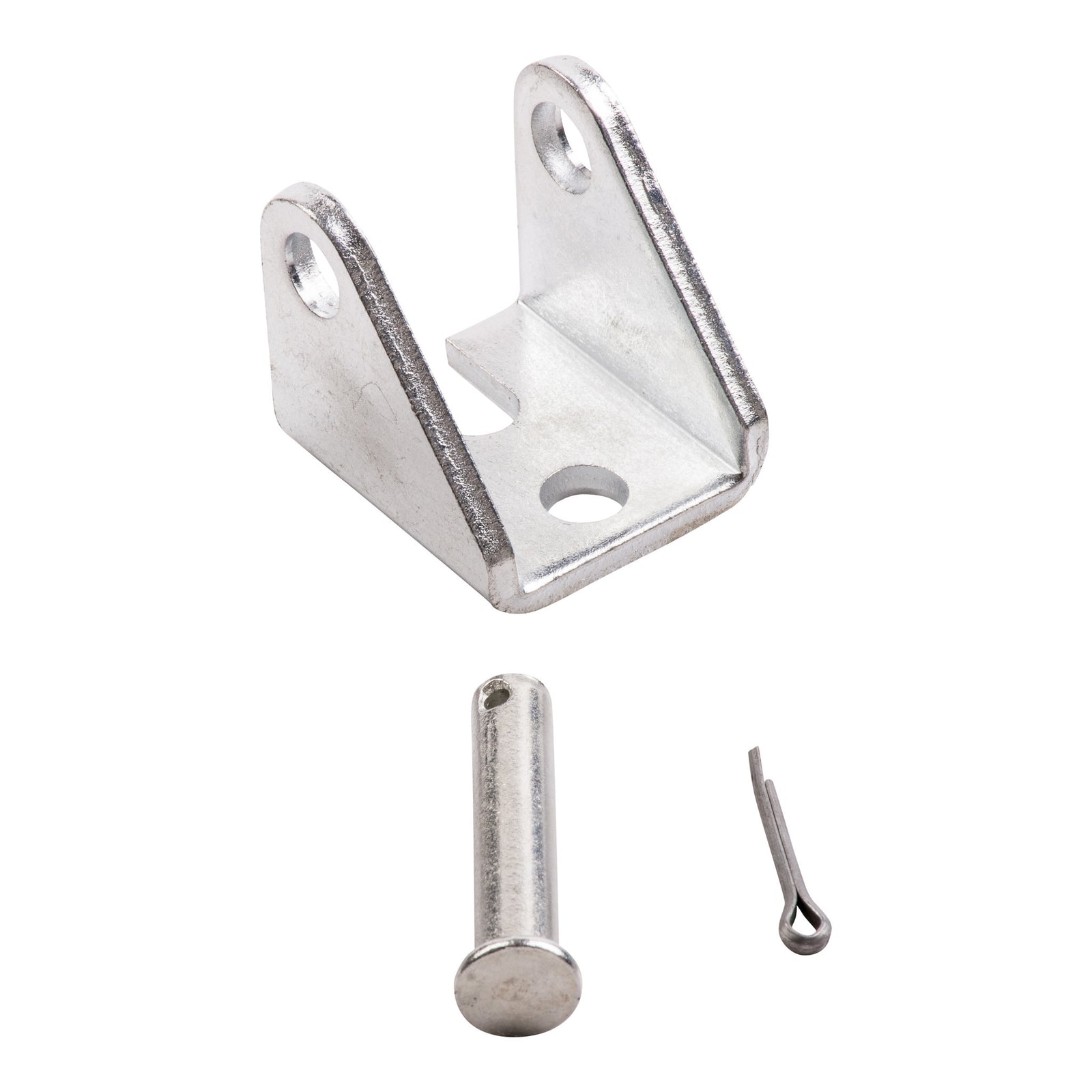

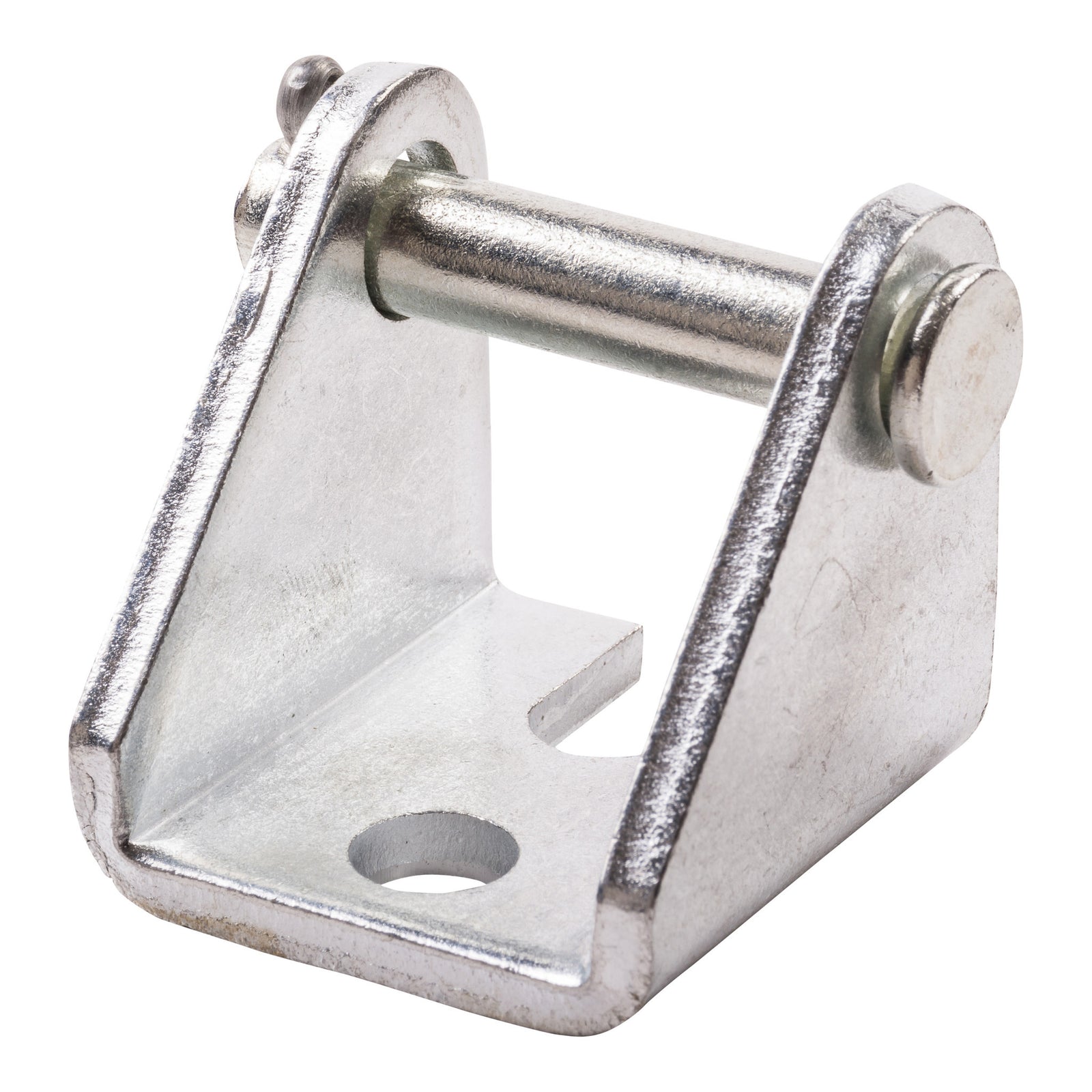

The MB3U is the solution to heavy duty applications that involve high torque and loads. This is a similar design as the MB1 Bracket, however it has been enlarged for different linear actuator product lines, features a thicker clevis pin for added strength and durability, but still maintains the over-sized and elongated holes on the base of the bracket for fine adjustment. Just as with other clevis-type brackets offered by Firgelli Automations, the product is sold as a single unit and ships with the clevis pin as well as a cotter pin to secure it.

Technical Drawings
